General Description

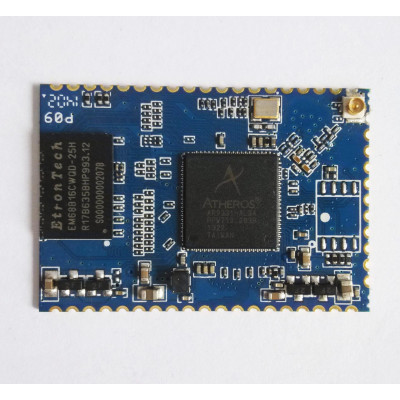

The module of AR9331 is a complete, small form facto802.11 b/g/n Wi-Fi Solution
optimized folow power, low-cost, and highly integrated AP and consumeelectronic
devices, the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB
design,equiring only a few external 3.3V powesupply and connection to antenna.
The module based on the single chip AR9331 which integrates an 802.11n 1x1 MAC/BB/
radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps fo20 MHz
and 150 Mbps fo40 MHz channelespectively, and IEEE 802.11b/g dataates.
The module support AP mode and client mode at the same time and include mass service
application software toeduce theesearch and design work of customer.
Features
MIPS 24K processooperating at up to 400 Mhz.
DD2 memory up to 512 Mb.
SPI NOR Flash memory up to 64Mb.
4LAN ports and 1 WAN port
High-speed UART foconsole support
I2S audio interface
USB 2.0 host/device mode support
GPIO/LED support
SPI support.
